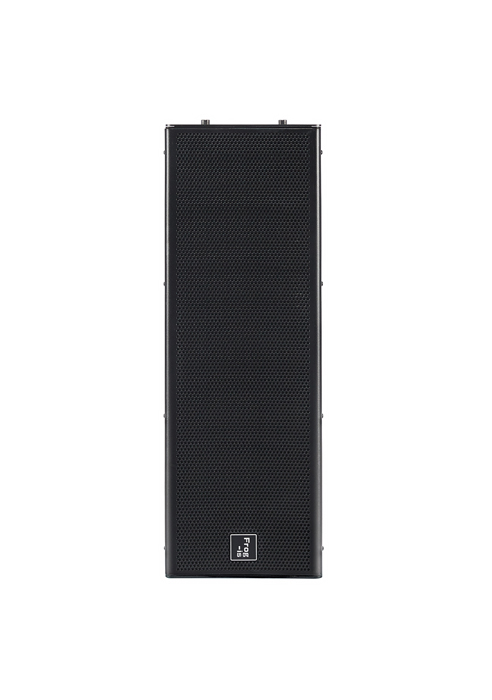

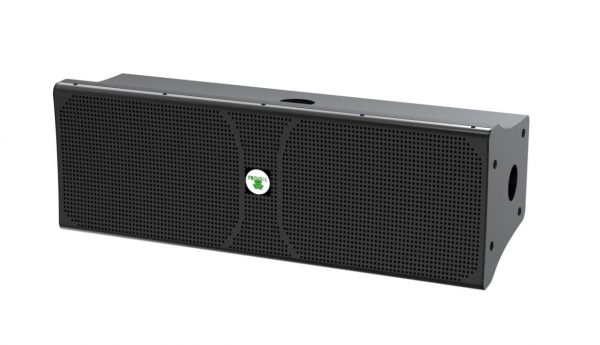

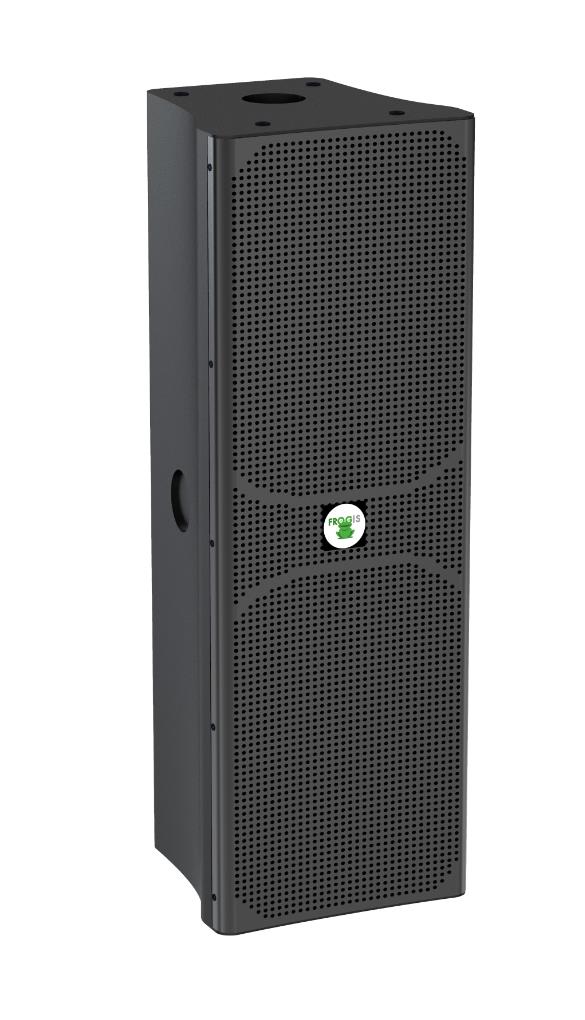

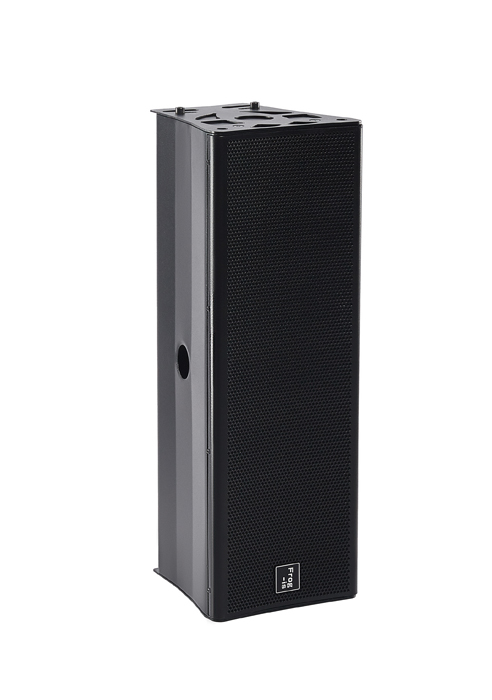

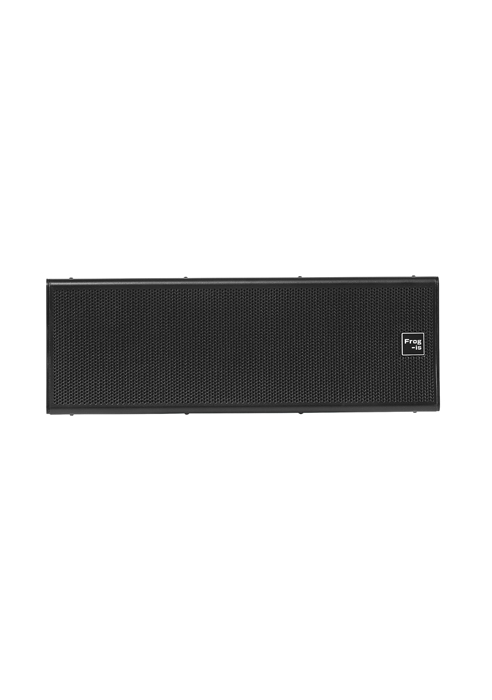

FA-2X6T
Dual 6-inch Line Array Speakers
The FA-2X6T is a 304 grade stainless steel, 2-way full range speaker system equipped with 4-units speakers.
It has a 130° horizontal coverage pattern and the ability to select the vertical coverage from 10° to 130°, making it useable as both a point source and as a line array element.
The FA-2X6T is ideal for medium throw applications in theaters, concert halls, houses of worship, Audio-Visual installations, stadiums and outdoor theme park.
The FA-2X6 uses two 6” Neodymium cone speakers with 2.5” voice coils for low-mid frequencies. The mid-high frequency section employs two 1” voice coil Neodymium compression drivers. The FA-2X6T is designed to easily integrated with FA-2X10S subwoofer.
Features
Applications
Specifications
- Good ratio of performance to product size
- Flat Amplitude and Phase Response
- Built-in 35mm bracket mounting holes
- 304 stainless steel shell, suitable for all-weather and outdoor use
- Waterproof grade IPX6

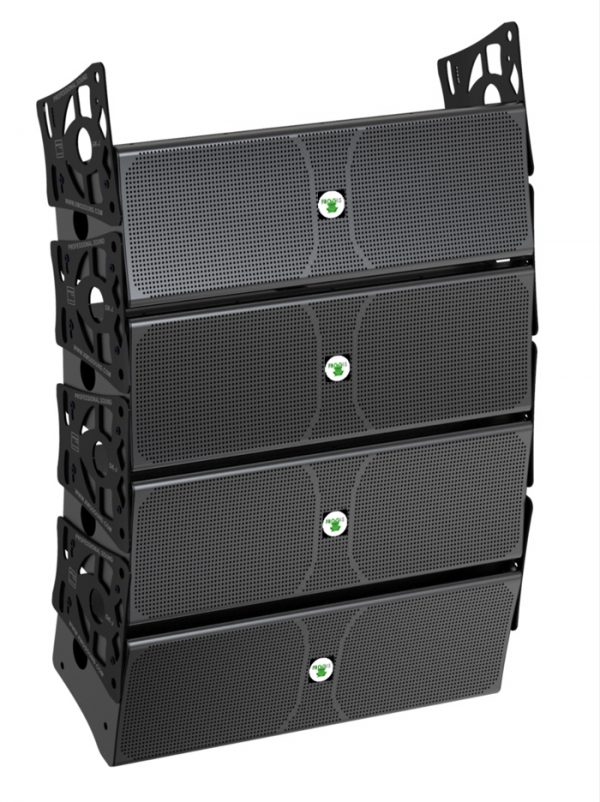

- It can be used as a point source speaker or a line array unit
- Theaters
- Concerts halls
- Clubs
- Churches
- Movie surround sound and effects enhancement
- Sound reinforcement for tight spaces
| Acoustic parameters | |
| Frequency response | 45Hz - 19 KHz +/- 3dB (preset dependent) |
| SPL 1W/1mt | 96 dB (low) 104 dB (high) |
| Maximum SPL | 125 dB continuous - 131 dB peak |
| Coverage | |
| Horizontal | 130° |
| Vectical | selectable from 10° to 130° |
| Drivers | |
| Mid-low Driver（Impedance） | 2 x 6” Neodymium speaker 2.5” coil （4Ω） |
| Tweeter（Impedance） | 2 x 0.5” Neodymium compression driver 1” coil （8Ω） |
| Power | |
| Max Power | Mid-low Driver：2x500 W Tweeter：2x80W |
| Rated Power | Mid-low Driver：2x250 W Tweeter：2x40W |
| Crossover | |
| Type | Build-in Crossover |
| Freqency | 1.8KHz minimum（Depends on presets） |
| Physical | |

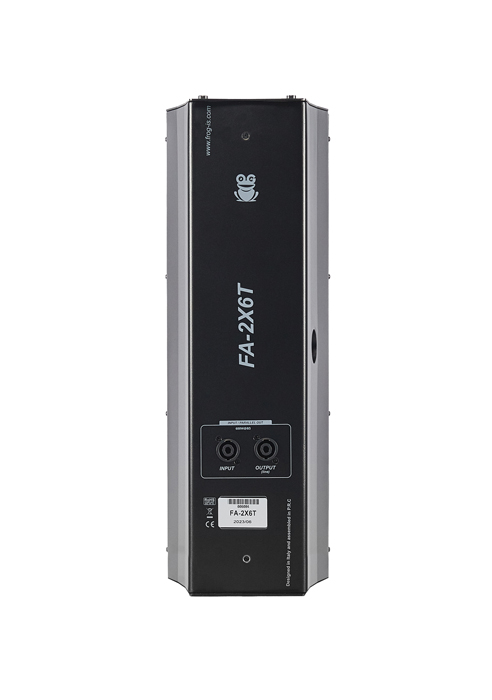

| Input connector | Speakon in |
| Output connector | Speakon out |
| weight | 10 Kg (22.05 lbs) |
| Dimensions W x H x L | 17.5 x 51 x 19 cm (6.89”x 20.08”x 7.48”) |
