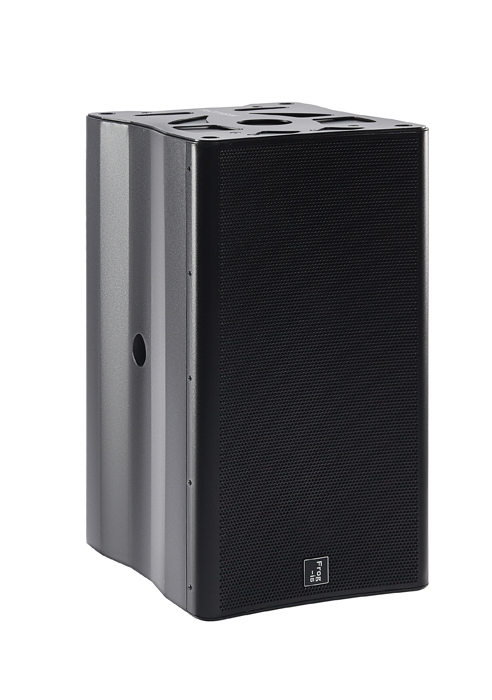

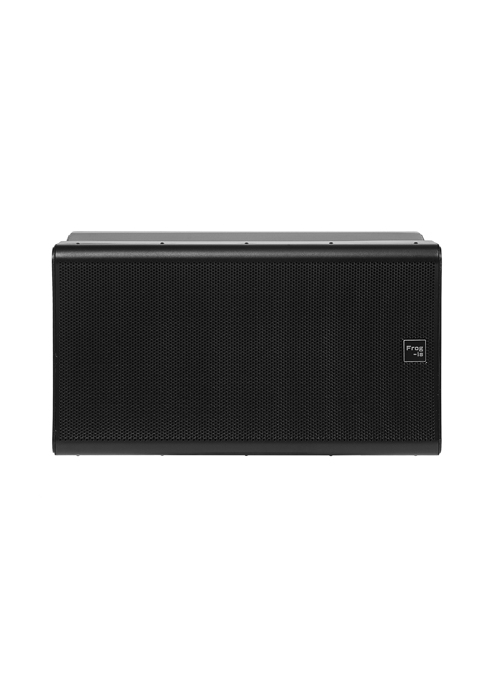

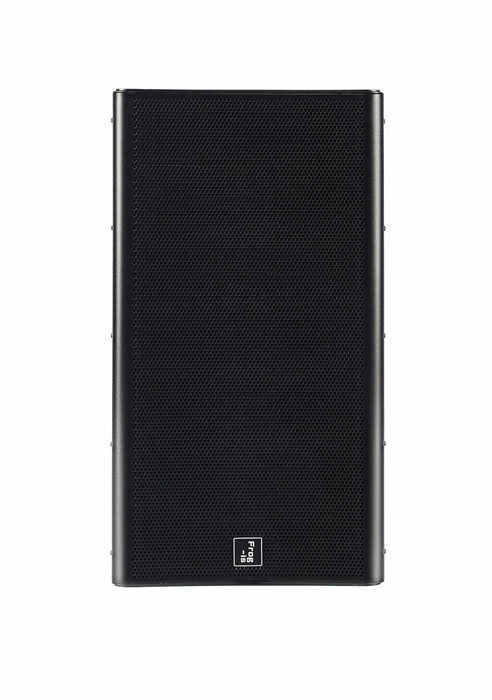

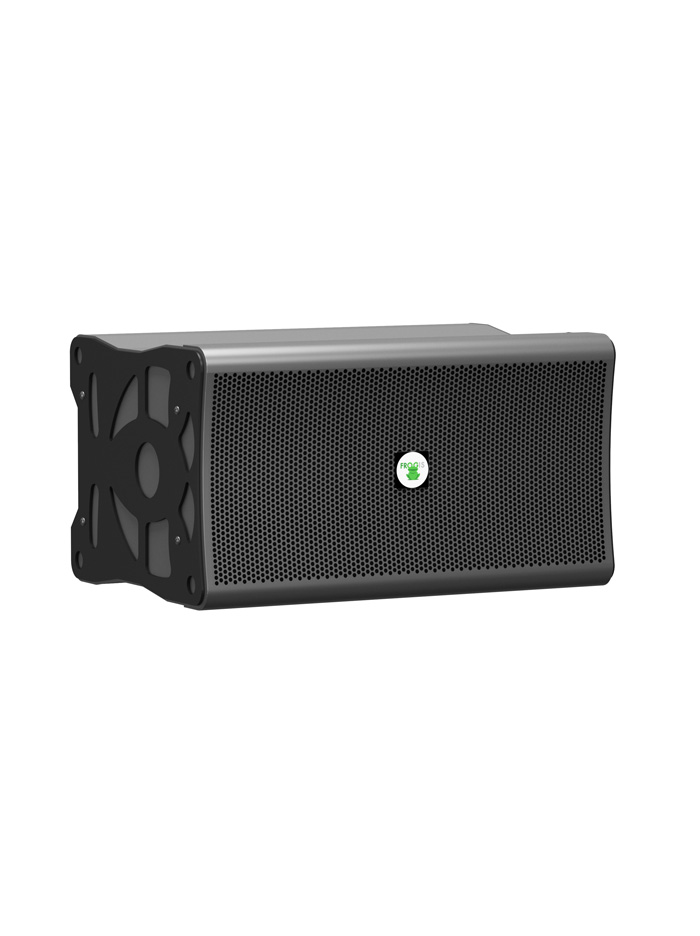

FA-2X10S
High Performance Line Array Subwoofer
FA-2X10S is a 304 grade stainless steel, high-performance sub-bass speaker designed for pair with the FA-2X6T or other smaller to medium format full range speaker systems in both touring and installation applications.
The compact and strong stainless-steel chassis contains two 300W 10” transducers with Neodymium magnet structures and suspensions engineered for maximum linear excursion. Large area porting eliminates turbulent air noise.
FA-2X10S is ideal for medium throw applications in theaters, concert halls, Audio-Visual installations, stadiums and outdoor theme parks.
Features
Applications
Specifications
- Good ratio of performance to product size

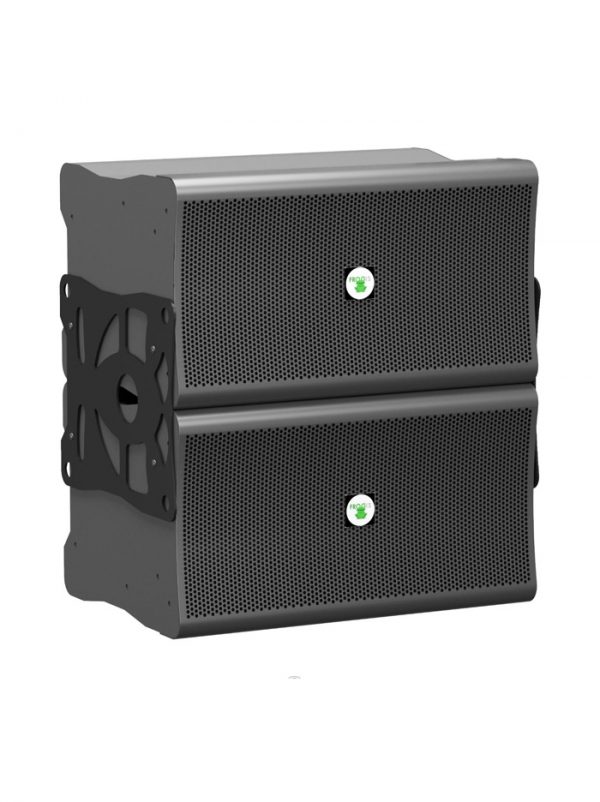

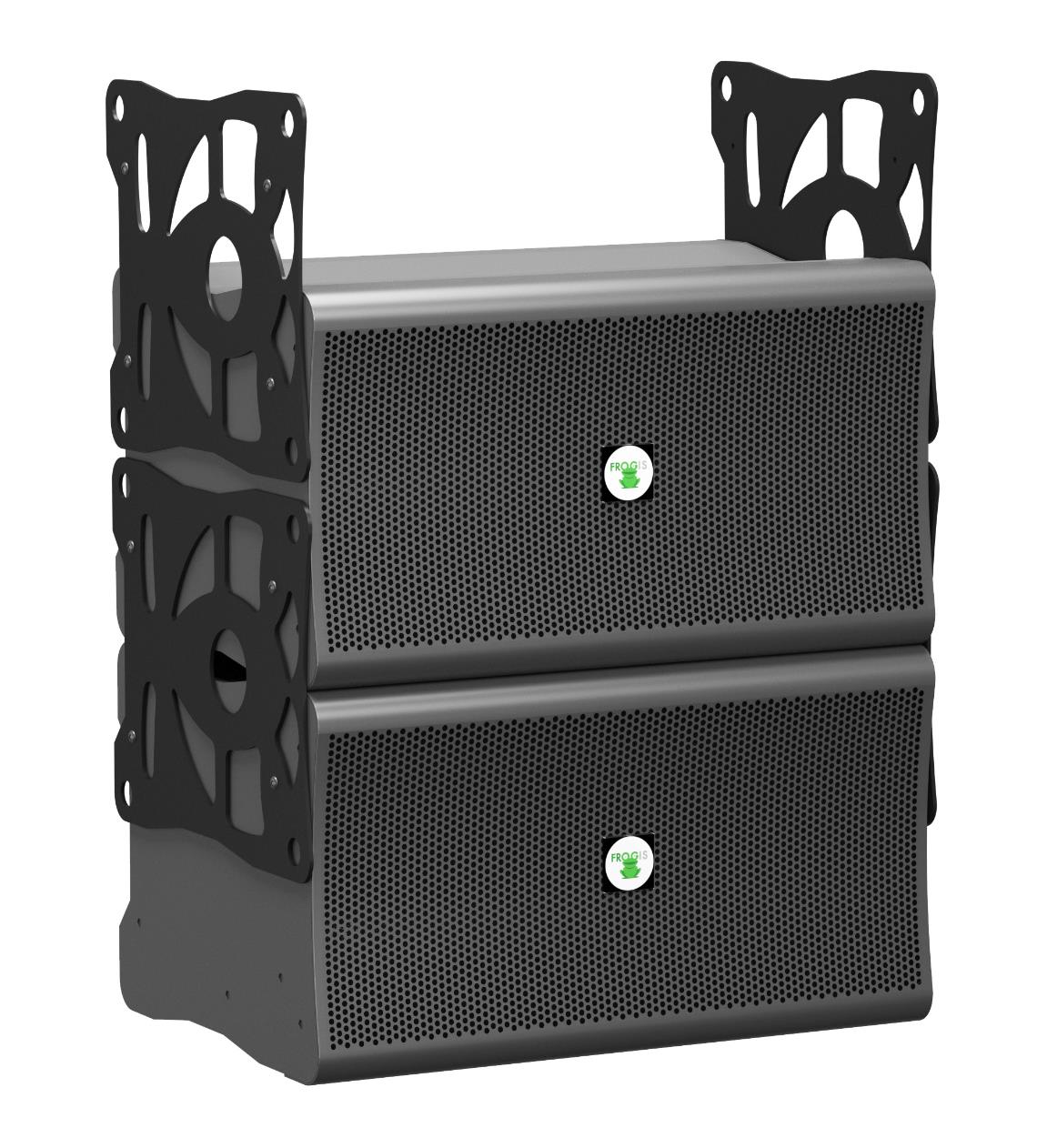

- Equipped with line array rigging accessories
- Built-in 35mm bracket mounting holes
- Direct and long excursion 10-inch driver
- 304 stainless steel shell, suitable for all-weather and outdoor use
- Waterproof grade IPX6
- Theaters
- Concerts halls
- Clubs
- Churches
- Outdoor stadiums
- Theme parks
| Acoustic parameters | |
| Frequency response | 30Hz - 200 KHz +/- 3dB |
| SPL 1W/1mt | 115 dB (low) 121 dB (high) |
| Maximum SPL | 125 dB continuous - 131 dB peak |
| Drivers | |
| LF driver（Impedance） | 2 x 10” Neodymium speaker 2.5” Coil （8Ω） |
| Power | |
| Rated Power | 2X300W |
| Peak Power | 2X600W |
| Physical | |

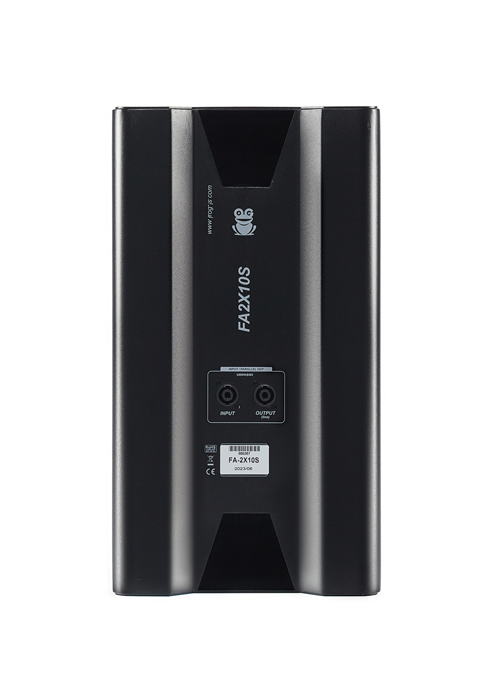

| Input | Speakon in |
| Output | Speakon out |
| weight | 16 Kg |
| Dimensions W x H x L | 55.1 x 28 x 28 cm (19.88”x 13.19”x 33.6”) |
