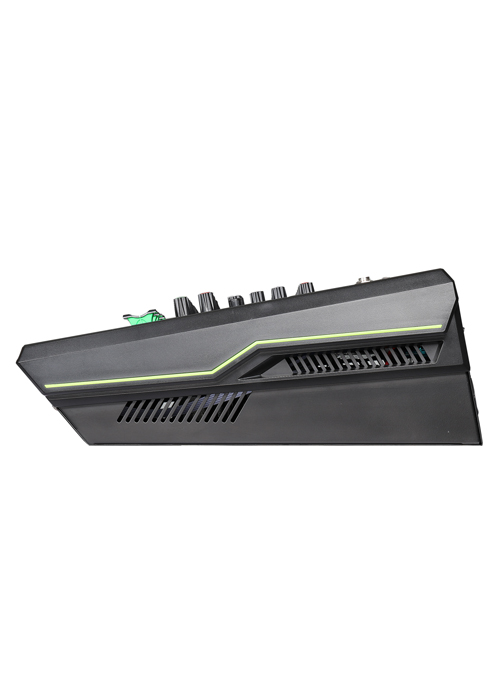

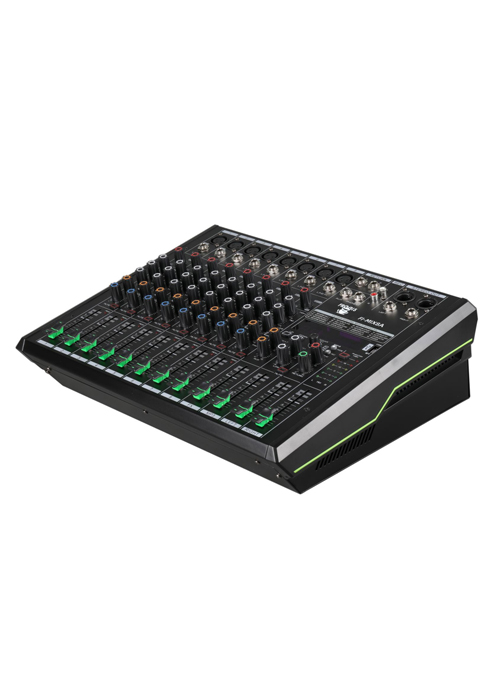

FI-MIX8A
Powered 8-Channel Professional Audio Mixe
FI-MIX8A powered compact mixer delivers natural audio performance, excellent technical specifications, intuitive operation
and stable reliability for mobile and fixed installation applications.
It inherits the reliable build quality of FROG-IS. This all-in-one powered console integrates professional mixing circuit and built-in power amplifier, offering simple operability, premium sound quality and durable construction.
Equipped with solid metal housing and high-grade electronic components, FI-Mix8A is a trustworthy all-in-one solution for sound reinforcement.
Features
Applications
Specifications
- 8 mono channels input

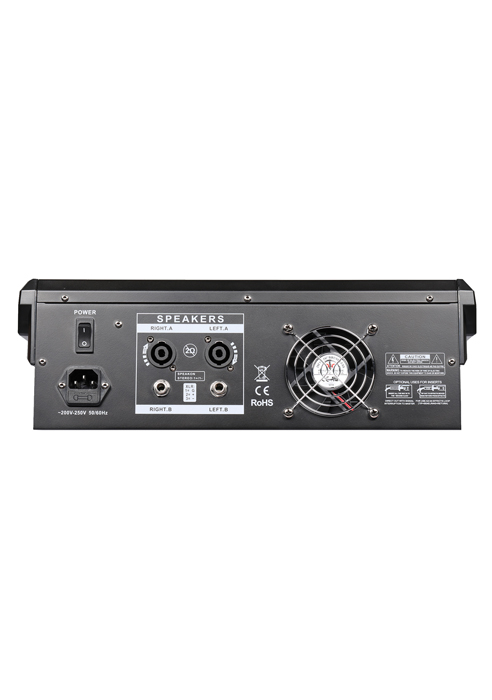

- 2 main amplified speaker outputs, 1 MP3 output, 1 Aux output
- Built-in USB media player, Bluetooth wireless audio, audio recording function
- Global switchable +48V phantom power for condenser microphones
- Control room / headphone source matrix for flexible monitoring
- Each input channel equipped with 3-band EQ & Low Cut Filter
- 45mm channel faders, 60mm main output faders
- Extra wide headroom & dynamic range
- Ultra low-distortion microphone preamplifiers
- Integrated power amplifier: 280W @ 4Ω
- Heavy-duty metal chassis for extended service lif
- Small live shows, rooftop bars, cafes, conference rooms, home recording studios, event mobile sound systems, small stage performances.
| Main Mix Noise (20 Hz–20 kHz bandwidth, 1/4" Main out, channel gains @ unity gain, channel EQ flat, all channels assigned to Main Mix, odd channels panned left, even channels panned right.) | |
| Main Mix fader unity, channel faders dow | -86.5 dBu (90 dB Signal to Noise Ratio, ref +4 dBu) |
| Main Mix fader unity, channel faders @ unity | −86 dBu |
| Total Harmonic Distortion (THD) (1 kHz 35 dB gain, 20 Hz–20 kHz bandwidth) | |
| Mic in to insert out | <0.0007% |
| Attenuation (Crosstalk) (1 kHz relative to 0 dBu, 20 Hz–20 kHz bandwidth, Line in, 1/4" Main Out, Gain @ unity) | |
| Channel Mute switch engaged | −82 dBu |
| Channel Gain knob down | −82 dBu |
| Frequency Response (Mic input to any output.) | |
| 20 Hz to 40 kHz | +0 dB/−1 dB |
| 20 Hz to 60 kHz | +0 dB/−3 dB |
| Equivalent Input Noise (EIN) (Mic in to Insert Send out, max gain.) | |
| 150 ohm termination | −129.5 dBu 20 Hz–20 kHz |
| Common Mode Rejection Ratio (CMRR) (Mic in to Insert Send out, max gain.) | |
| 1 kHz | better than −70 dB |
| Maximum Levels | |
| Mic in | +22 dBu |
| All other inputs | +22 dBu |
| Main Mix TRS out and XLR out | +28 dBu |
| All other outputs | +22 dBu |
| Impedances | |
| Mic in | 2.5 kilohms |
| Channel Insert return | 2.5 kilohms |
| All other inputs | 10 kilohms or greater |
| Tape out | 1.1 kilohms |
| All other outputs | 120 ohms |
| 3 Band EQ | |
| High Shelving | ±15 dB @ 12 kHz |
| Mid Peaking | ±15 dB sweep 100 Hz–8 kHz |
| Low Shelving | ±15 dB @ 80 Hz |
| Low Cut Filter | 18 dB/octave, −3 dB @ 75 Hz |
| Power Section | |
| Rated Power Output | ±15 dB @ 12 kHz |
| Power Consumption | ±15 dB sweep 100 Hz–8 kHz |
| Operating Voltage | ±15 dB @ 80 Hz |
| Fuse Ratings | 100–120 VAC: 1A Slo Blo, 5 × 20 mm / 220–240 VAC: 0.5A Slo Blo, 5 × 20 mm |
| Physical Dimensions & Weight | |
| Net weight | 8kg |
| Packing weight | 9.5 kg |
| Net Dimension | 39 × 32 × 8.5 cm |
| Package Dimension | 42 × 41.5 × 13.5 cm |
