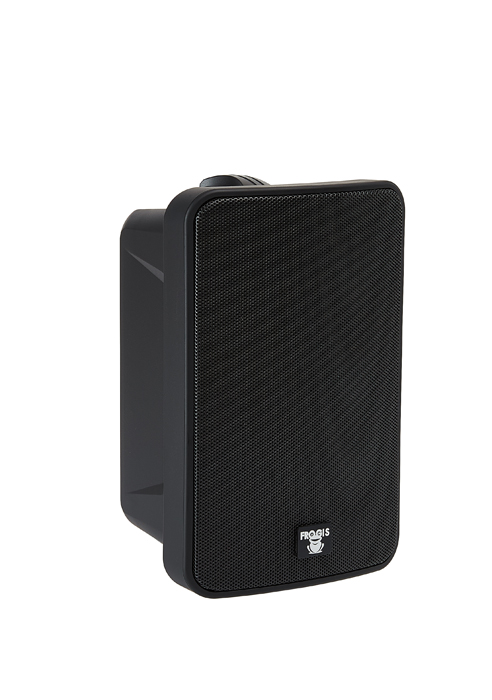

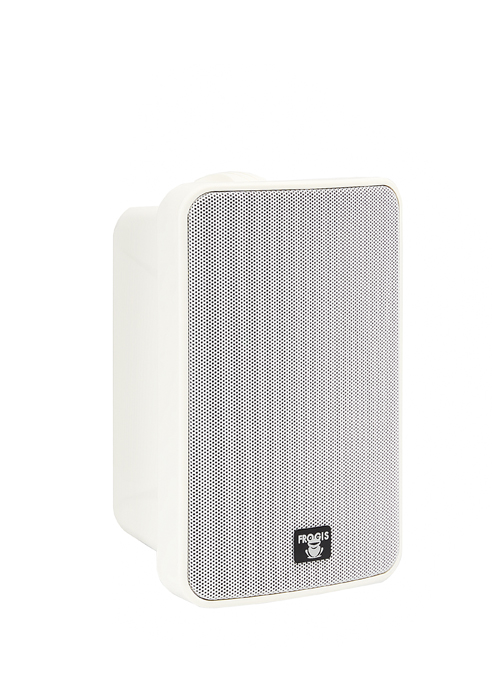

Two-way surface mounted speaker

The elegant design allows the FI-SMS4
to be used for any installations and environment, keeping the same high quality sound throughout.

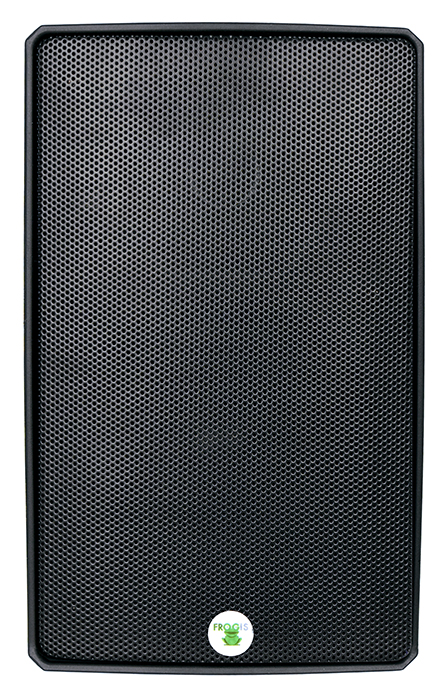

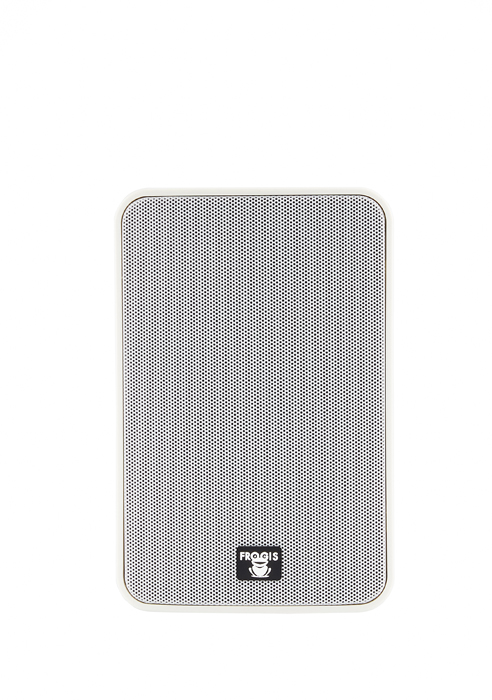

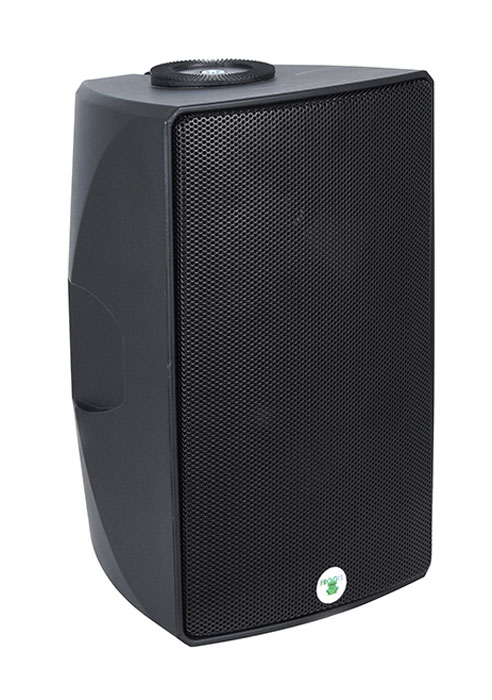

The FI-SMS4, made of ABS with a front metal grille, utilizes a compact two-

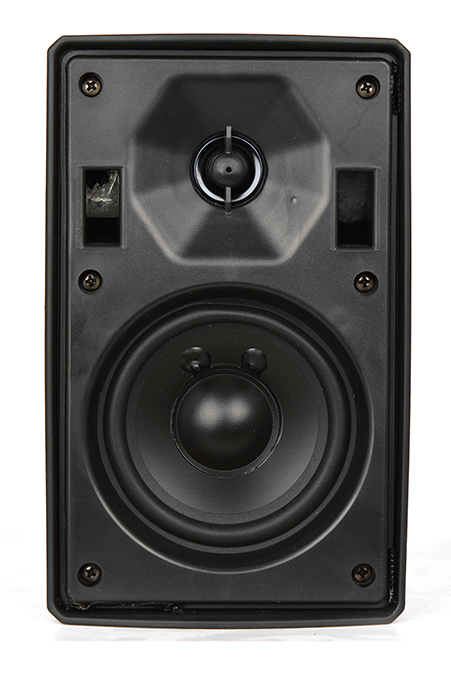

way system (4” woofer, 1” tweeter) guaranteeing high performances, wide dynamics, high fidelity sound reproduction and high voice intelligibility.

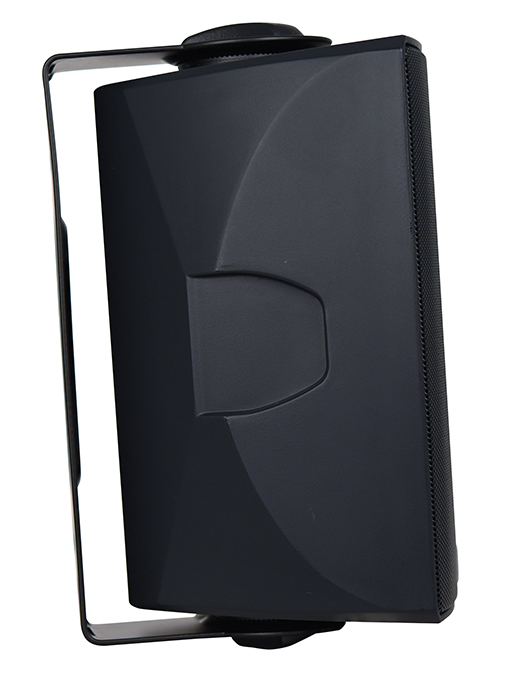

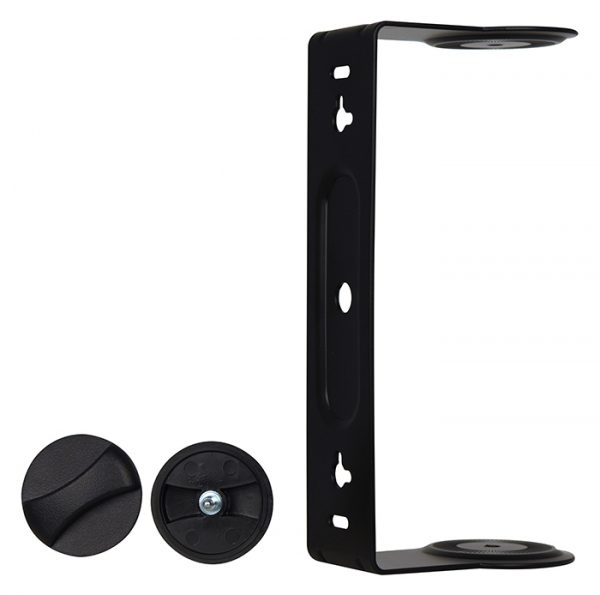

Multi-position, C-shaped mounting bracket and rugged construction provide optimum installation flexibility and assurance of long-term service.

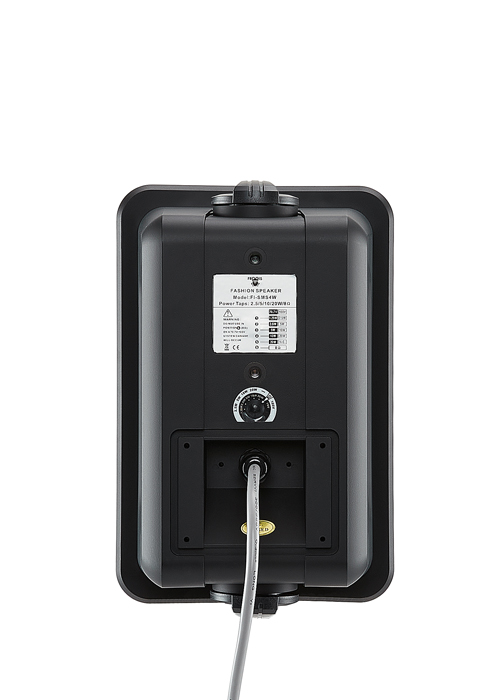

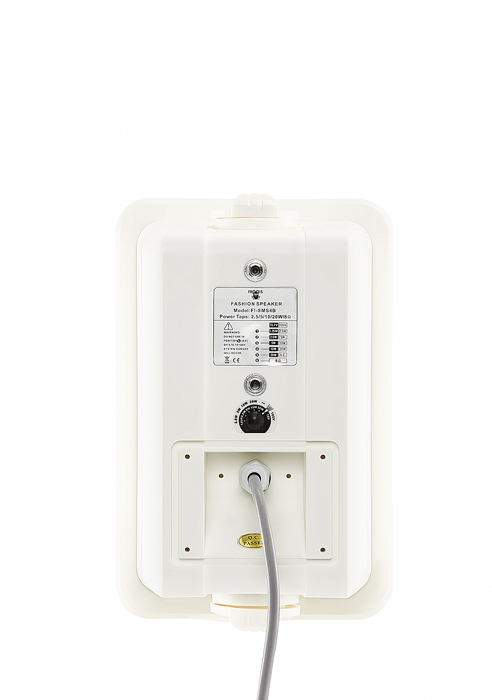

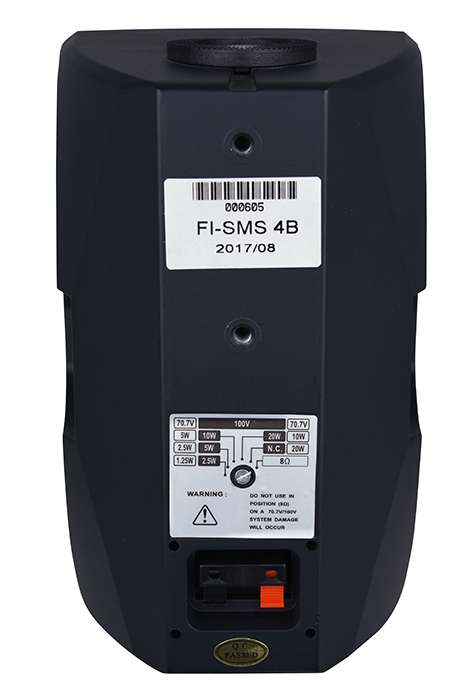

Its power tap selector makes it suitable for high (70V/100V) voltage line and low impedance (8Ω). This ceiling speaker
is designed to offer an economic and professional solution to contractors.

Features Applications Specifications
  • Two-way speaker with rich sonic character
  • Wide and consistent coverage
  • Suitable for high (70/100 V) voltage line and low impedance (8Ω) installations
  • Contemporary, high-design appearance
  • High fidelity sound character with broad frequency response of 90 Hz - 20 kHz.
  • High quality speaker enclosures made of strong ABS material
  • Heavy-duty C-bracket for mounting included
  • Easy installation
  • The FI-SMS4 is an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/ outdoor foreground/ background music
    (and/or paging) speaker is required.
General Specification
type FI-SMS4 (B/W)
Frequency response 90 -20 KHz
Sensitivity 89dB @ 1 watt / 1 meter
Power Handling 20 W
Power taps 20W/10W/5W/2,5W & 8Ω
Line input 100 V / 70 V
Dimension (L x W x H) (mm) 130*125*210
Physical Specification
Material (panel) HIPS
Grille Powder Coated AL Mesh
Component (L.Speaker) 4» PP Woofer
Component (H.Speaker) 1» PEI
Finished Colour White/Black
Unit Weight 2.1 Kg
Woofer Speaker Specification
Voice Coil Size ø 0.15*2Layer
DC Impedance 7,2Ω
Former Asv
Magnet Ferrite (416g) ø 80*ø 32*15(Y30)
Basket Iron
Cone Material PP
Spider Cloth
Dust cap PP
Net Weight 685 g
