FI-SUB12A
12" Active Sub-woofer w/ 2 x 12" passive Radiators, 350W Amplifier

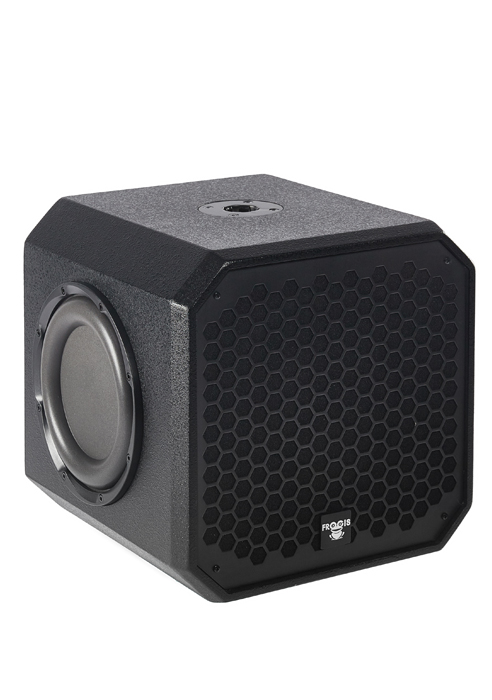

The Fi-Sub12A is an ultra-compact cubic active subwoofer dedicated to the installation market.
The front firing 12” woofer is back loaded by two side 12” passive radiators, providing an extreme low frequency extension for it’s modest size.
Features
Applications
Specifications
- Extreme discreet look
- Extreme low end extension
- High efficiency, allowing supporting multiple full range installation speakers
- High power 350W Class AB amplifier
- Multiple controls allowing adjusting of level, LPF frequency, Phase
- Ideal for home theatre
- Ideal for larger size cafés, restaurants, lounges, house of worship installations
| Acoustics | |
| Frequency response | 35 Hz – 250 Hz |
| Power handling | 350W |
| SPL | 117dB Cont. – 123dB Peak |
| Impedance | 4 Ohms |
| Transducers | 12” with dual passive radiator |
| Amplifiers | |
| Power Voltage | Fixed 110V - 240V |
| Operating Voltage | 110V (100V to 125V) 220V (200V to 245V) |
| Max Output 1% THD | 350 Watts @ 4 Ohms |
| Protections | Short Circuit, Thermal, Overload |
| Physical | |
| Net Weight | 18.5 Kg (40.78 lb) |
| Dimensions WxHxD | 40 cm x 40 cm x 40 cm (15.7” x 15.7” x 15.7”) |
