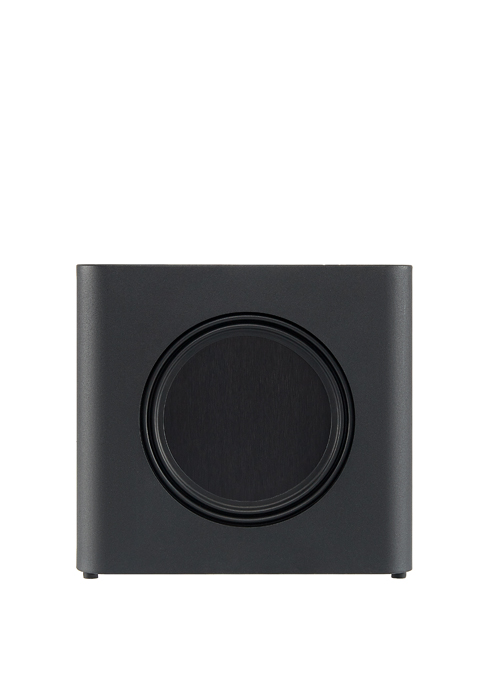

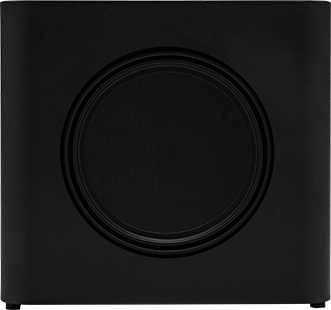

FI-SUB6P
Ultra Compact Installation Sub-woofer
The FI-Sub6P is an Ultra-compact Passive 6″ Subwoofer. The 6” passive radiator emulates a larger internal volume giving this tiny sub the deep bass performance of a Sub-woofer three times its size.
Features
Applications
Specifications
- Ultra-compact installation subwoofer
- Designed, engineered and tuned in Italy
- The enclosure made of Stainless Steel, giving an IP54 rating
- Ideal for outdoor installation applications
- Compact and discrete, making it ideal for sophisticated interior designs
- Impressive Low frequency performance for its minimal size
- An excellent solution to fulfil any installation applications such as restaurants, lounges, hotel lobbies, corporate offices, retail store, outdoor terraces etc
| Acoustic Concept | Passive Radiator loaded |
| Electrical Concept | Dynamic, dual 4 Ohms Voice Coils |
| Impedance | Selectable, 2 Ohms, 4 Ohms, 8 Ohms |
| Frequency Response | 40Hz to 140Hz (-6dB) |
| Efficiency | 91dB / 1W / 1M |
| Maximum SPL | 106dBC Cont. / 112dBC Peak |
| Transducers | 6” Dynamic Woofer with dual 1.5” Voice coil Single 6” Passive Radiator |
| Power Handling | 200 Watts Avg. (2 x 100 Watts) |

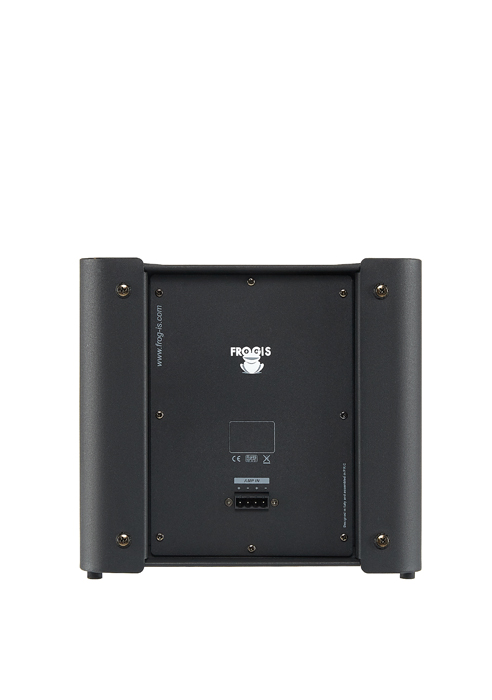

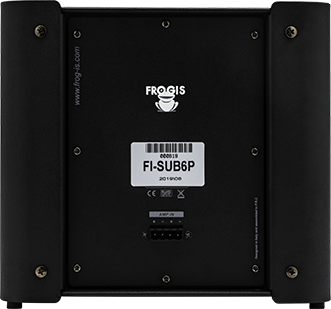

| Connector | Phoenix, 4 contacts |
| Enclosure | Stainless Steel, Weather Resistant, IP54 |

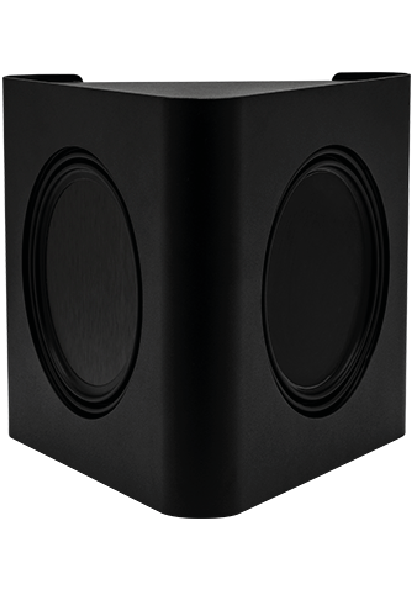

| Dimensions | Triangular, 20cm W, 20cm D, 20cm H |
| Weight | 4.6 Kg |
