SubwoofersInstallation

FI-CSUB6P

Compact passive 6” ceiling mount subwoofer

The FI-CSub6P is a compact passive 6” ceiling mount subwoofer.

The FI-CSub6P comes standard with an “Acoustic Back Loading Enclosure”.

It’s overall size is the one of a standard 6” ceiling speaker.

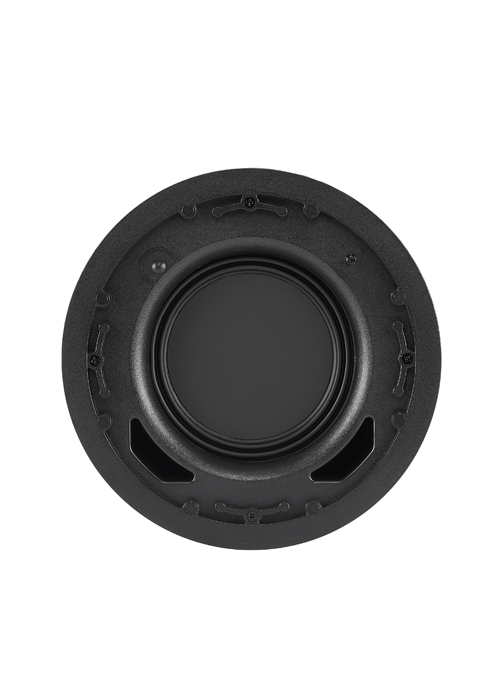

The 6” woofer is the same as our surface mount FI-Sub6P, but it has a dual acoustic port system making it a perfect Bass Reflex loading system.

The FI-CSub6P provides the equivalent punch of a floor standing Sub-woofer.

Features

  • Compact and discrete, making it ideal for sophisticated interior designs
  • The 6” woofer is designed, engineered and manufactured in Italy
  • Ideal for installation where the designer will not allow any surface sub-woofer
  • Impressive Low frequency performance for it’s minimal size
  • 8 Ohms impedance allowing up to two sub-woofer per amplifier channel

Applications

  • An excellent solution to fulfill installation applications such as restaurants, lounges, hotel lobbies, corporate offices, retail stores, etc.

Specifications

General Specifications
Acoustic conceptPorted bass reflex
Electrical conceptDynamic, dual 4 Ohms voice coils
ImpedanceFixed 8 Ohms
Frequency response45Hz to 140Hz (-6dB)
Efficiency90dB / 1W / 1M
Maximum SPL104dBC Cont. / 110dBC Peak
Transducer6” Dynamic woofer with dual 1.5” Voice coil
Power handling100 Watts avg.

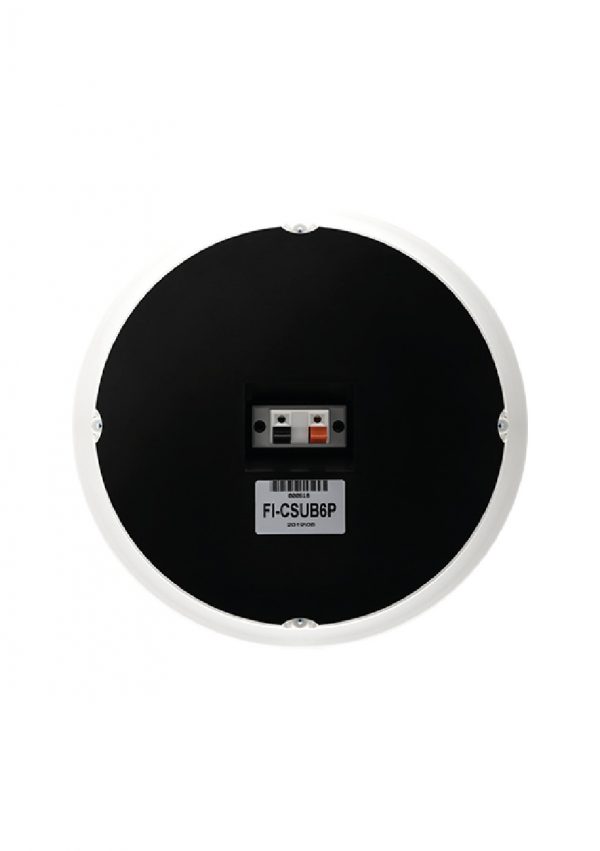

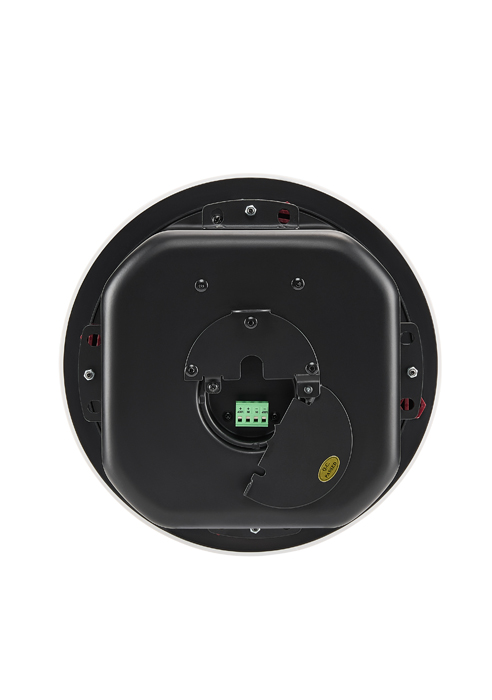

ConnectorPhoenix socket
EnclosureMetal enclosure
Hole for mounting (mm)ø 240
Dimensions (L x H)ø 267 x 162 mm
Weight4.3 Kg
