FA-X4T
Two way 4 inch Mini Line Array Speaker System

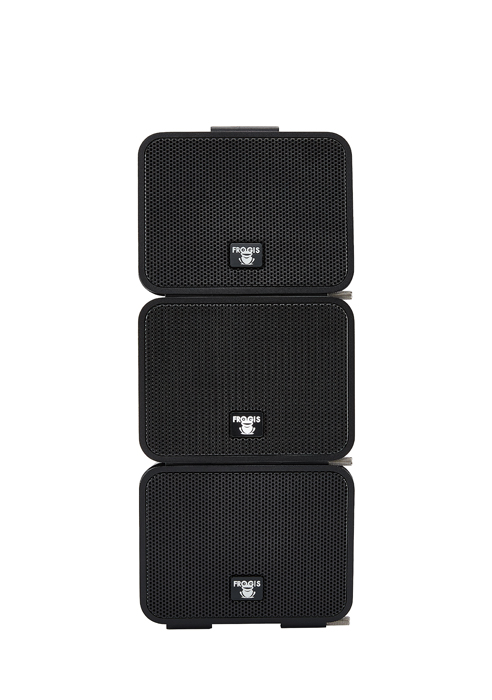

The FA-X4T is a Two way 4 inch Mini Line Array Speaker system, its outer shell is made of Aluminum die casting enclosure, equipped with 3 Neodymium tweeter and 1 Neodymium woofer speaker.
It has a 110 degrees Horizontal coverage, and a 20 degrees Vertical coverage(one module)
The FA-X4T is suitable to be used in small size theaters, concerts, auditoriums, workshops and audio-visual installations.
Features
Applications
Specifications
- Good ratio of performance to product size
- Flat Amplitude and Phase Response
- Aluminum die casting shell suitable for all-weather and outdoor use
- Waterproof grade IPX6
- Clubs
- Churches
- School
- Sound reinforcement for tight space
| Acoustic parameters | |
| Frequency response | 100Hz-20KHz(-10dB) |
| Sensitivity(1W/1m) | 90dB |
| Maximum SPL | 103dB |
| Impedance | 8 Ohm |
| Coverage | |
| Horizontal | 120° |
| Vectical | 20° |
| Attachment Points | Adjustable Rigging system & Vertical Splay in 0°- 4°- 8°- 12°increments from 0°- 12° |
| Drivers | |
| Mid-low Driver | 1x4” Neodymium woofer with 1” Voice Coil |
| Impedance | 8Ω |
| Tweeter | 3 x Neodymium Tweeter with 0.5” Voice Coil |
| Impedance | 8Ω |
| Power | |
| Max Power | 120W |
| Rated Power | 60W |
| Crossover | |
| Type | Build-in Crossover |
| Crossover Frequency | 3.0Khz |
| Physical | |

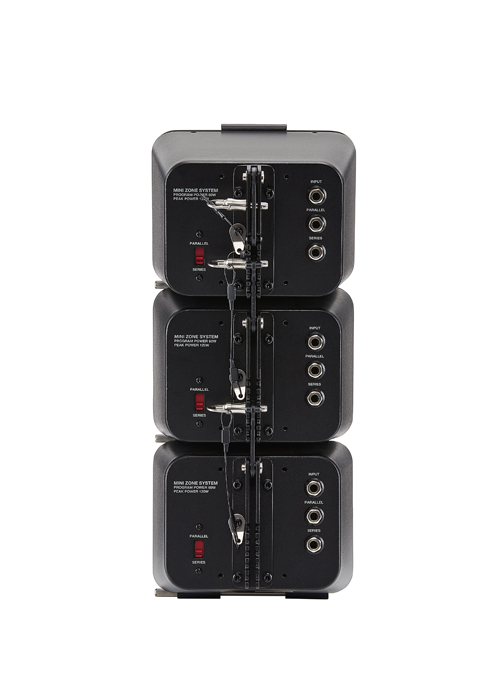

| Parallel or Series | 6.3mm Socket / Selection Switch |
| Weight | 1.46Kg / 3.22 lbs |
| Dimensions W x H x L | 141 x 170 x 162 mm / 5.55” x 6.69” x 6.38” |
