Ceiling speakersInstallation

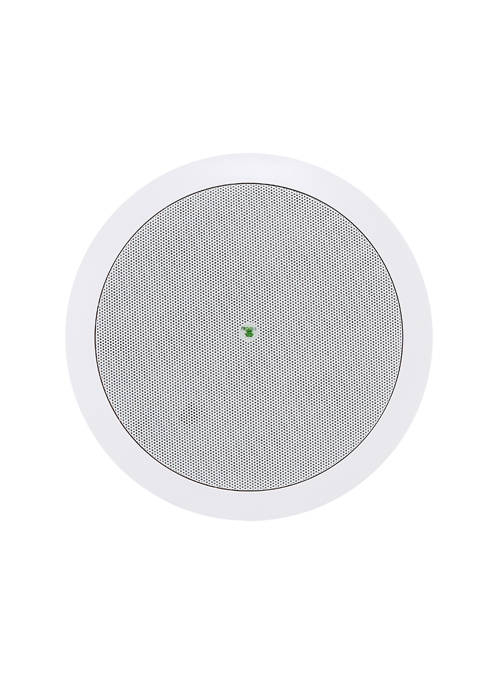

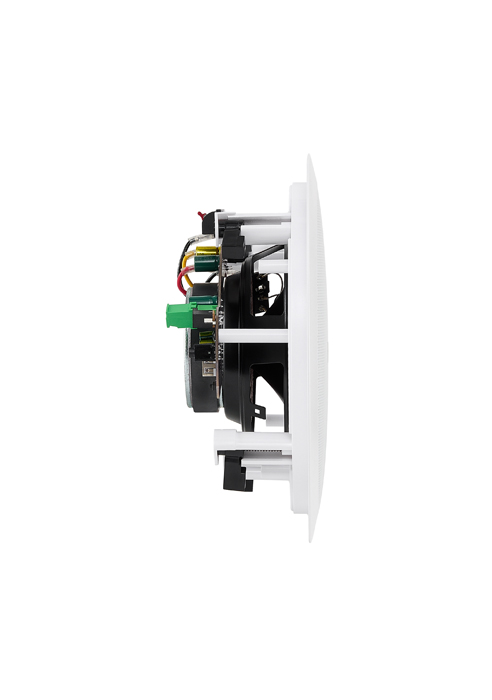

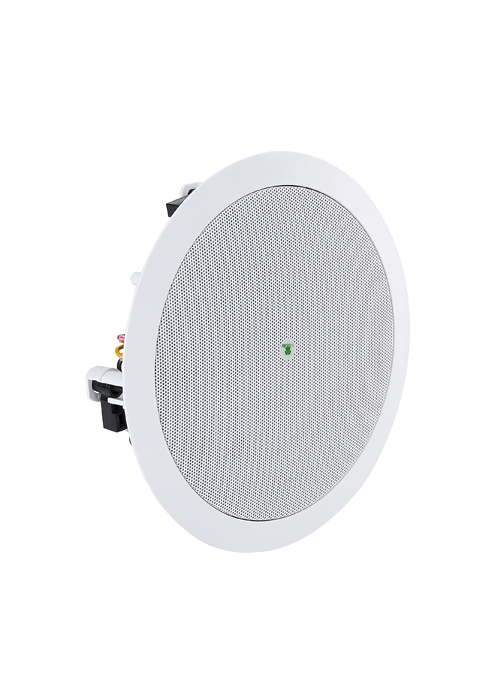

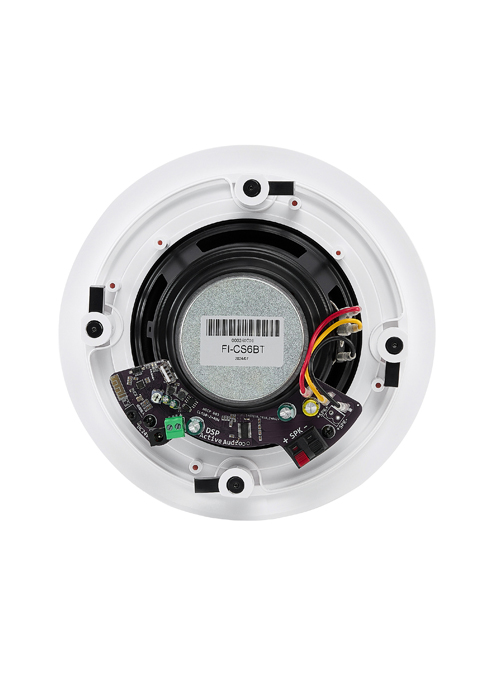

FI-CS6BT

Two-way Bluetooth active ceiling Speaker

FI-CS6BT All-in-one Wireless Bluetooth 6 inch Ceiling Speakers allow you to play any audio streaming service from your phone. We combine an Amplifier, Bluetooth Receiver, and a High-Quality coaxial speaker, to offer you the ideal All-in-one Solution for your property.

With the Amplifier & Bluetooth built-in, this is a completely wireless solution. Tucked discreetly into your ceiling, our All-in-one Bluetooth 5.0 Ceiling Speakers promise perfectly uninterrupted low latency audio projection, giving you complete sound coverage for your room.

Features

  • ALL - IN - ONE Solution (Amplifier & Bluetooth built-in, so all you need is power)
  • JUST ADD POWER AND STREAM MUSIC (Connect to plug socket or exiting light circuit)
  • HARDWIRED CONNECTION (Using the 3.5mm jack input, connect your speaker to a TV or turntable)
  • VOLUME CAP, RENAME AND PIN CHANGE (Use the Setup App to configure your speakers)
  • 30 M WIRELESS RANGE (Latest Bluetooth 5.0 technology built-in)
  • AMPLIFIER BUILT IN (Powerful 50W RMS Class D amplifier)
  • CONNECT TO YOUR TV VIA BLUETOOTH (Low latency quality audio with aptx technology)

Applications

  • DESIGN FOR SMALLER ROOM & HOSPITALITY(Perfect for bathrooms, bedrooms, hotel rooms and holiday lodges.)

Specifications

General Specification
TypeFI-CS6BT
Frequency response70 -20 KHz
Sensitivity89 dB @ 1 watt / 1 meter
Rated power30 W/ 8Ω
Hole for mounting (mm)ø 208
Dimensions (L x H)ø 240 x 85 mm
Physical Specification
Material (panel)ABS White RAL 9016
GrillePowder Coated Iron Mesh
Component (L.Speaker)6.5" (PCK + PF) Woofer
Component (H.Speaker)1" PEI Dome
Finished ColourWhite RAL 9016
Unit Weight1.82 Kg
Gross Weight14.5 Kg/8PCS
Packing Dimension57 x 57 x 25 cm
Woofer Speaker Specification
Voice Coil Sizeø 26*2H*0.16*2Layer
DC Impedance6Ω
FormerKSV
MagnetFerrite (416g) ø 80*ø 32*15(Y30)
BasketIron
Cone MaterialPCK + PF
SpiderCONEX
Net Weight1075g
