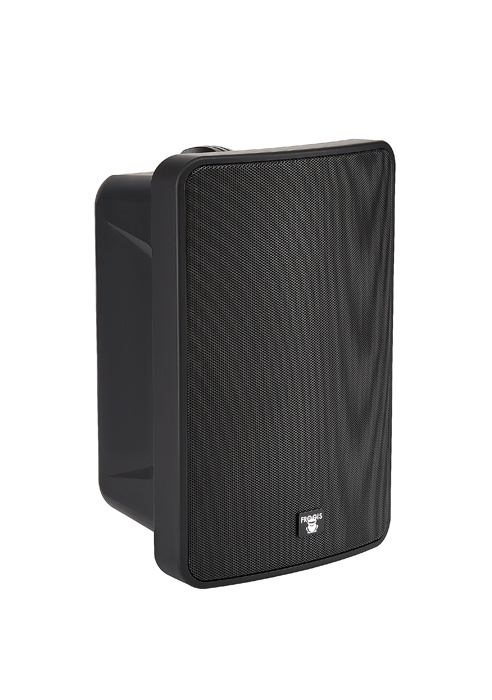

Two-way surface mounted speaker

The elegant design allows the FI-SMS6 to be used for any installations and environment, keeping the same high quality sound throughout.

The FI-SMS6, made of ABS with a front metal grille, utilizes a compact two-

way system (6” woofer, 1” tweeter) guaranteeing high performances, wide dynamics, high fidelity sound reproduction and high voice intelligibility.

Multi-position, C-shaped mounting bracket and rugged construction provide optimum installation flexibility and assurance of long-term service.

Its power tap selector makes it suitable for high (70V/100V) voltage line and low impedance (8Ω). This surface mounting speaker is designed to offer an economic and professional solution to contractors.

Features Applications Specifications
  • Two-way speaker with rich sonic character
  • Wide and consistent coverage
  • Suitable for high (70/100 V) voltage line and low impedance (8Ω) installations
  • Contemporary, high-design appearance
  • High fidelity sound character with broad frequency response of 70 Hz - 20 kHz.
  • High quality speaker enclosures made of strong ABS material
  • Heavy-duty C-bracket for mounting included
  • Easy installation
  • Waterproof grade IPX6
  • The FI-SMS6 is an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/ outdoor foreground/ background music(and/or paging) speaker is required.
General Specification
type FI-SMS6 (B/W)
Frequency response 70 -20 KHz
Sensitivity 90dB @ 1 watt / 1 meter
Power Handling 60 W
Power taps 60W/30W/15W/7.5W & 8Ω
Line input 100 V / 70 V
Dimension (L x W x H) (mm) 214*178*329
Physical Specification
Material (panel) HIPS
Grille Powder Coated AL Mesh
Component (L.Speaker) 6.5 inch Woofer
Component (H.Speaker) 1 inch silk
Finished Colour White/Black
Unit Weight 4.76 Kg
Woofer Speaker Specification
Voice Coil Size ASVø25.5*ø 0.19*2Layer
DC Impedance 6.8Ω
Former ASV
Magnet Ferrite (400g) ø 90*ø 32*15(Y30)
Basket Iron
Cone Material Paper
Spider Conex
Dust cap Paper
Net Weight 1.1kg
