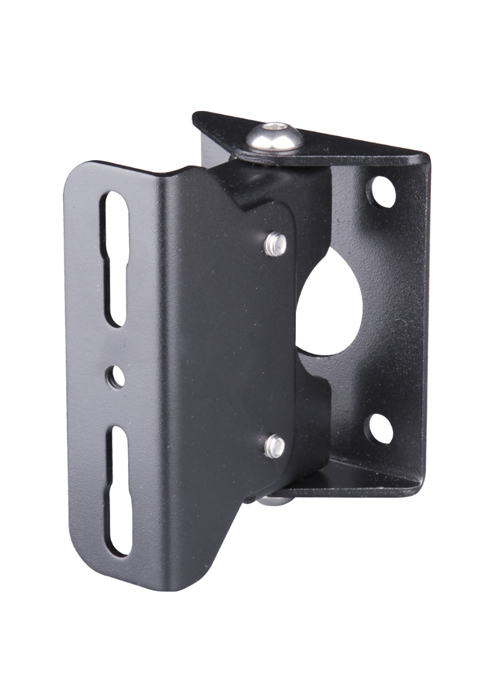

FS-Bracket3
Multi-angle adjustable wall mount speaker bracket
FS-Bracket3 has fast installation, multi-angle adjustable, safe and durable advantage. Suitable for primary small size speaker with back side mounting screw holes: FS2X3, FS4X3
The FS-Bracket3 is a heavy-duty universal speaker wall mount bracket engineered for safe, fast, and flexible installation of professional loudspeakers. Constructed from high-grade cold-rolled steel with a durable black powder-coated finish, this bracket provides exceptional structural strength and long-term reliability in any installation environment.
Featuring a user-friendly design with multi-angle adjustment, the FS-Bracket3 allows precise speaker aiming across six preset angles (-5°, -15°, -25°, -35°, +20°, +32°) to optimize coverage in any space. The integrated cable pass-through hole ensures clean, professional cable management, while the bottom hook design provides additional security during installation.
Whether installed in conference rooms, auditoriums, retail spaces, restaurants, or residential settings, the FS-Bracket3 delivers a secure mounting solution that combines robust construction with effortless installation flexibility.
- Cold-Rolled Steel Construction: High-grade cold-rolled steel body provides exceptional strength and durability for safe, long-term wall mounting.
- Multi-Angle Adjustment: Six preset angle positions (-5°, -15°, -25°, -35°, +20°, +32°) for precise speaker aiming and optimal coverage.
- Fast & Secure Installation: User-friendly design enables quick, safe wall mounting with minimal tools required.
- Integrated Cable Pass-Through: Built-in cable hole allows clean, concealed cable routing for a professional finish.
- Bottom Hook Design: Convenient hook feature provides additional security and support during installation.
- Universal Compatibility: Standard mounting pattern compatible with a wide range of professional loudspeakers.
- Powder-Coated Finish: Durable black powder coating resists scratches, corrosion, and wear for long-lasting appearance.
- Precision Engineering: CNC-machined components ensure tight tolerances and a secure, rattle-free fit.
- Conference rooms and boardrooms
- Auditoriums and lecture halls
- Retail stores and shopping centers
- Restaurants, bars, and cafes
- Hotels and hospitality venues
- Educational facilities and classrooms
- Houses of worship
- Residential home theaters
- Fitness centers and gyms
- Any professional loudspeaker wall-mount installation
| Model | FS-Bracket3 |
| Product Type | Universal Speaker Wall Mount Bracket |
| Material | Cold-Rolled Steel |
| Finish | Black Powder-Coated |
| Mounting Hole Diameter | Ф10 mm |
| Bracket Height | 100 mm |
| Side Mounting Hole Spacing | 45 mm |
| Wall Plate Dimensions | 90 × 50 mm (H × W) |
| Wall Plate Hole Spacing | 50 mm |
| Adjustable Angles | -5°, -15°, -25°, -35°, +20°, +32° |
| Cable Management | Integrated pass-through cable hole |
| Security Feature | Bottom hook design |
| Installation | Wall mount, secure & fast |
| Load bearing | <= 40KG |
| Horizontal Angle | -40°~ + 40° |
| Vertical Angle | -5° ~ + 35° |
