Point source speakersInstallation

FI-M50

High-quality compact studio Monitor

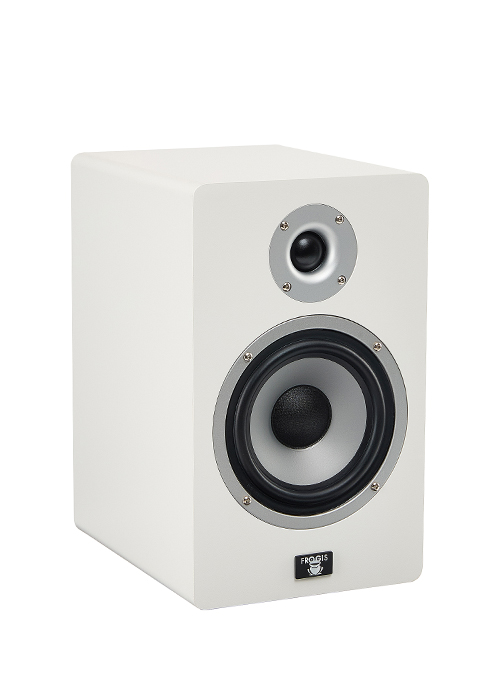

By carefully selecting parts such as a high-performance class-D amp, a highly resilient MDF cabinet, woofers and soft dome tweeters, FI-M50 deliver a punch and assertive sound that is faithful to the source despite their small size. The rear side wide port reduces air turbulence noise in the bass reflex port, providing clear and accurate bass. That’s the secret to why the FI-M50 deliver outstanding resolution, sound image, and depth, with a flat response across all bandwidths without any coloring of the original sound.

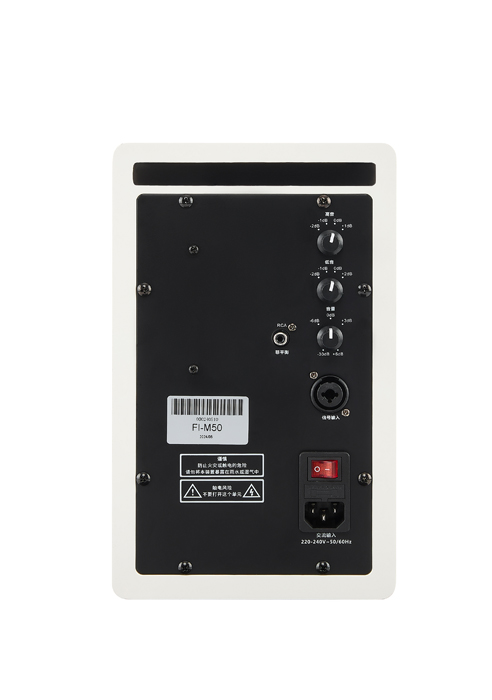

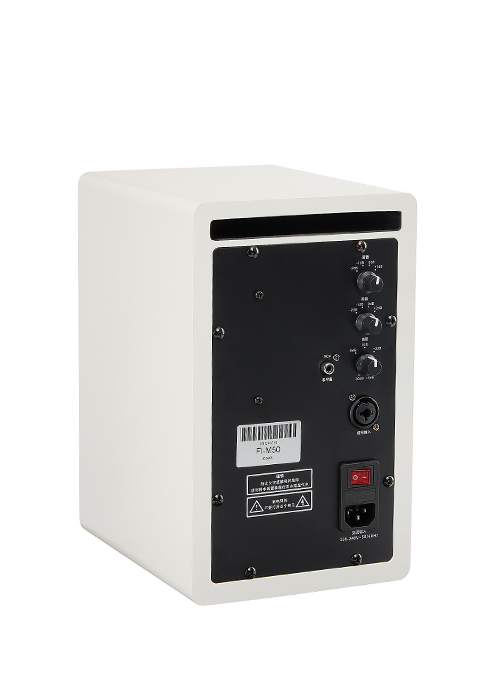

The sound produced by speakers is sometimes affected by the surrounding environment. The rear panels of FI-M50 are equipped with ROOM CONTROL and HIGH TRIM functions that allow you to make adjustments to achieve the ideal sound for any environment, such as reducing the unneeded, exaggerated low-end that can often occur when speakers are placed next to walls.

Features

  • Ultra-compact and light weight system delivers excellent sound
  • Extremely Efficient 5.5” woofer provides incredibly deep bass and acoustic power
  • Precise 1” dome driver for exceptional high-frequency reproduction
  • Ultra-wide dispersion
  • Overload protection circuitry ensures optimal HF driver protection
  • Optimal sound tailored to your environment
  • Input and controls to fit any use case

Applications

  • Audio engineers, Producers and Artists, Music Production

Specifications

Specifications
Frequency range50Hz-20Khz
SPL 1W/1mt108dB
Maximum SPL112dB
Crossover Frequency2.5 Khz
Input ConnectorCOMBO(XLR/TRS Phone), RCA
Dimensions175x220x285
Weight5.6kg
Packing Size230x275x365mm
Packing Weight6.5kg
Speaker Section
EnclosureBass-reflex type, Material: MDF
High Frequency1” Dome
Low Frequency5.5” Cone
Amplifier Section
Maximum Output50W
ControlsHigh frequency -2/-1/0/2Khz above +-1dB
Low frequency -2/-1/0/100Hz below +2dB
Back Volume control
IndicatorPower On (Red Light)
Power RequirementsDepending on area of purchase; 100-240V
