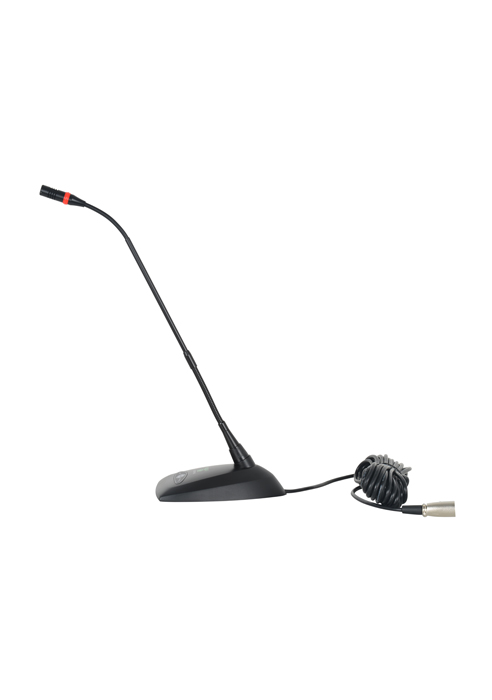

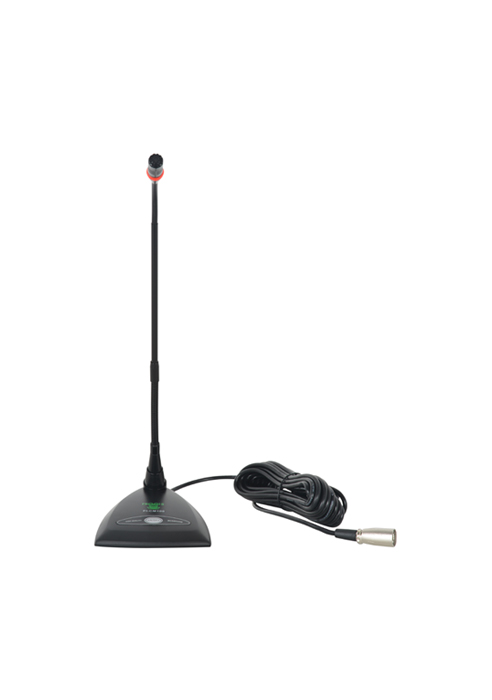

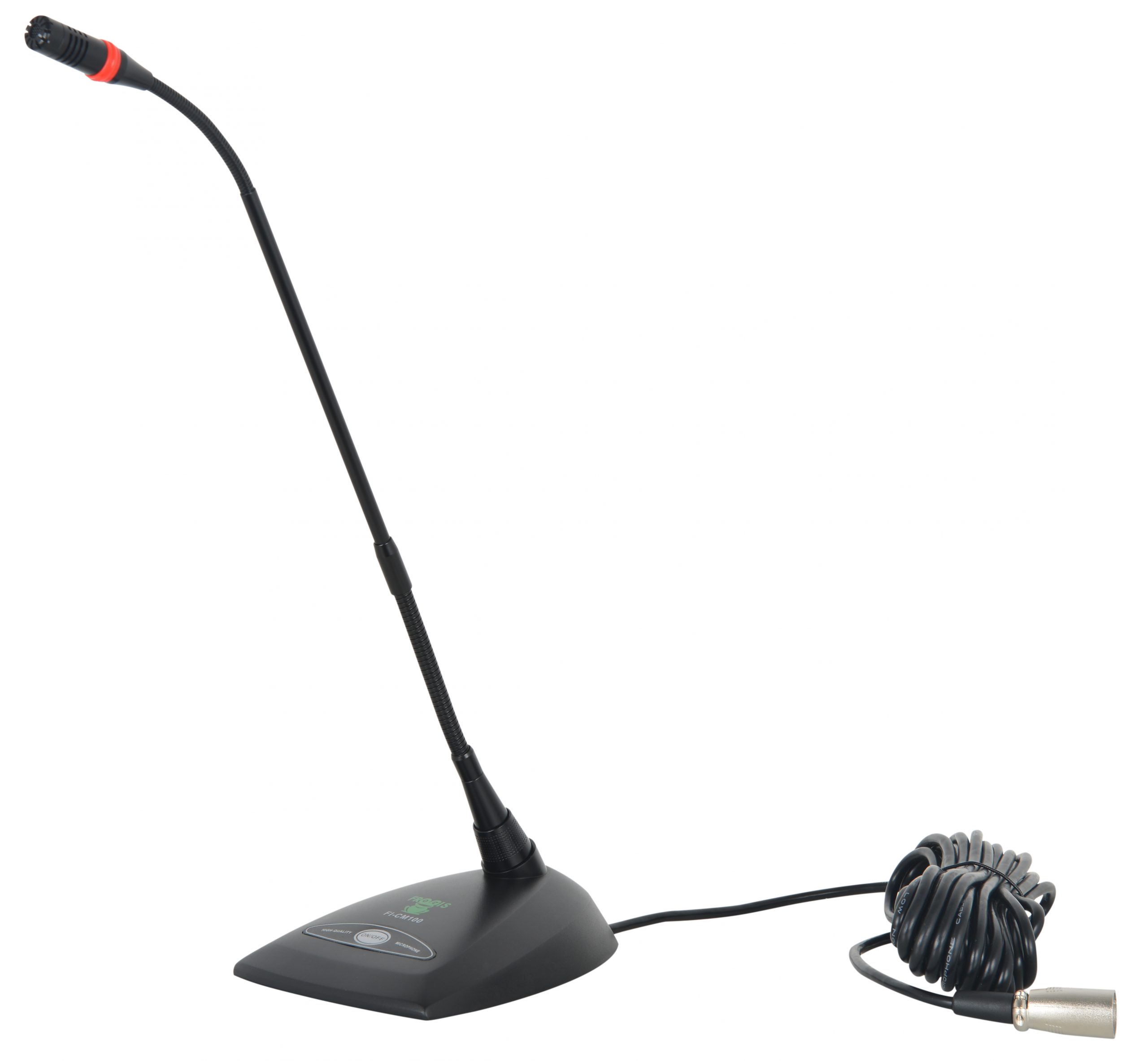

FI-MC100
Condenser gooseneck microphone for speech or conference
Frog-is FI-MC100 Series microphones are standard size electret condenser gooseneck microphones with a desktop base and attached with 6 m/10ft cable. The desktop base allows these microphones to be used in multi-purpose room where quick set-up is required, or where permanent installation is impractical.
Features
Applications
Specifications
- Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
- Interchangeable cartridges provide the right polar pattern for any application
- Balanced output for increased immunity to noise over long cable runs
- Programmable on/off switch and LED on/off indicator
- New brighter LED improves visibility under strong ambient lighting
- Logic input and output terminals for remote control or use with automatic microphone mixers
- Snap-fit foam windscreen
- multi-purpose room
- Conference room
| Technical data | |
| Frequency Response | 50-17,000 Hz |
| Polar Pattern | Supercardioid |
| Output Impedance (at 1,000 Hz) | Rated at 150Ω |
| Open Circuit Sensitivity (At 1kHz, ref. 1 V per Pascal) | -32.5 dBv(23.7 mV) |
| Maximum SPL (1kHz at 1% THD, 1kΩ load) | 122.0 dB |
| Equivalent Output Noise (A-weighted) | 28.0 dB SPL |
| Signal to Noise Ratio(reference at 94 dB SPL) | 66.0 dB |
| Dynamic Range with 1kΩ Load | 94.0 dB |
| Common Mode Rejection | 45.0 dB minimum |
| Mute Switch Attenuation | 50.0 dB minimum |
| Power Requirements | 11 to 52 Vdc phantom, 2.0 mA |
| Environmental Requirements | -18° to 57° C (0° to 135° F), Relative Humidity: 0-95% |
| Dimensions(base) | 102 x 161 mm |
| Weight | 0.86 kg |
