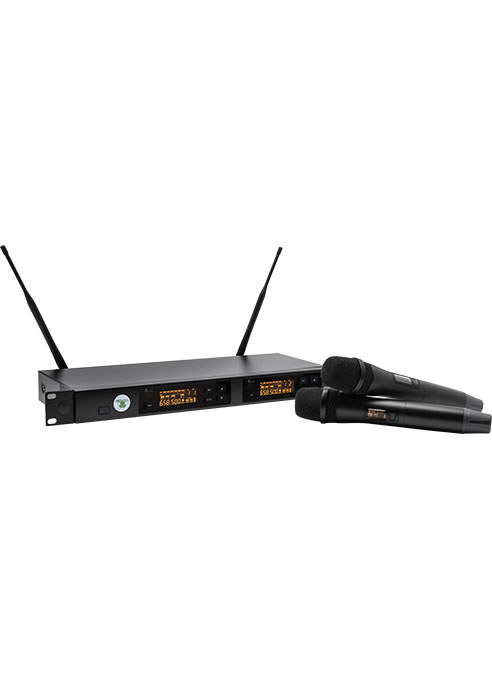

Dual Channel UHF Wireless Vocal Handheld Microphone, with Diversity Receiver

The FI-WP2V system allows for 10 frequency groups, each with up to 16 channels, adding up to a total of 160 usable channels that won’t interfere with each other. The onboard Digital Volume Control system removes the need for a volume control knob and allows for seamless use between different microphone users. Up to 16 transmitter/receiver systems can be used at the same time.

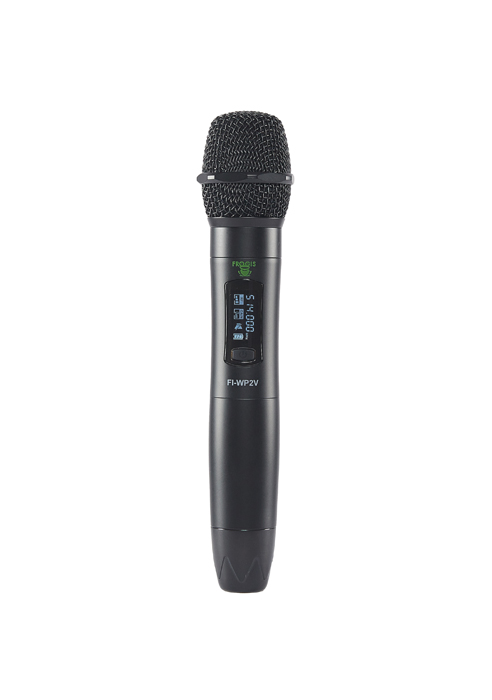

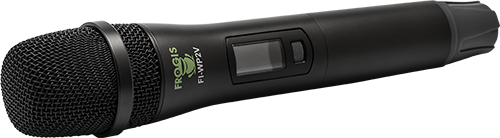

Handheld Wireless Microphone

The Handheld Wireless Microphone is a vocal microphone suitable for both speaking and live vocal performance. The frequency response replicates that of popular dynamic vocal mics giving crisp, clear mid-range sound that rejects feedback. The Handheld Wireless Microphone ‘s gain control allows

for tweaking of mic’s sensitivity to suit the vocal performer.

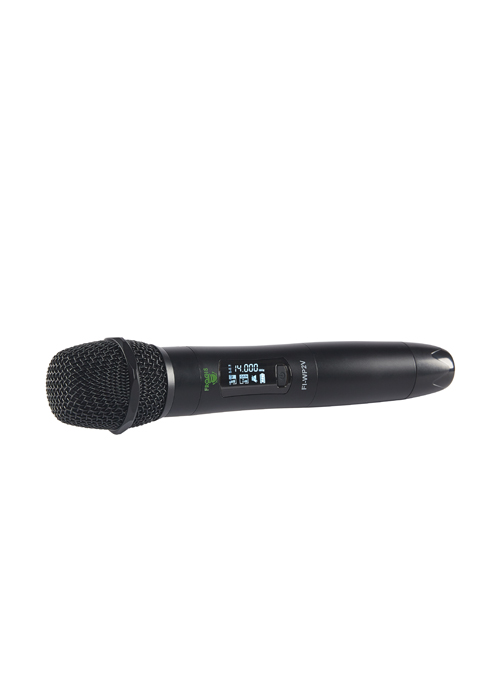

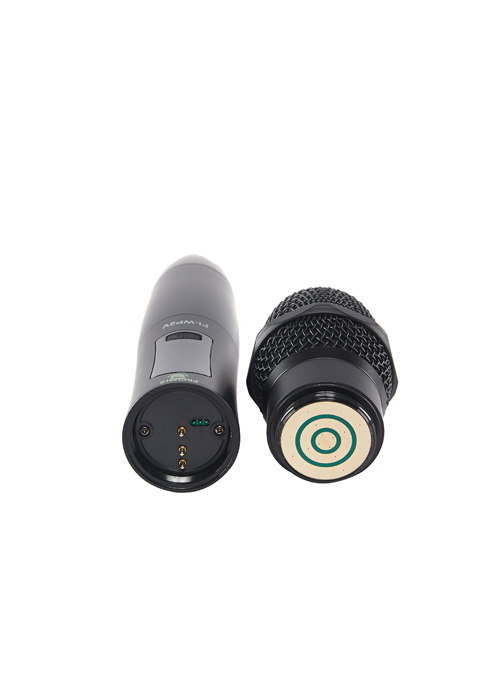

A back-lit LCD display shows the operational status of the microphone, including current group, channel, battery charge, and lock status. The removable grill allows for easy replacement if damaged. This microphone is perfect for performing bands, weddings and other functions with multiple or animated/ mobile speakers or vocalist.

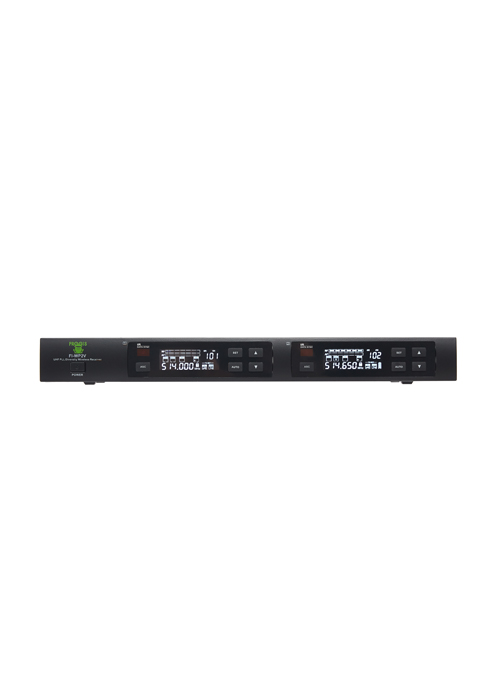

Dual Channel Wireless Receiver

The Dual Channel Wireless Receiver, easy to use high quality receiver with an impressive pick up range. The receiver uses automatic frequency testing to detect vacant frequencies
in the area. Combine this with infrared synchronisation that

automatically pairs the transmitter and receiver to the same frequency, and this system is as simple to set up as 1-2-3! To make life even easier, an onboard digital volume control system automates the volume level outputted ensuring maximum signal strength without distortion / clipping. The result is a clear, even sound between different speakers / singers.

True Diversity Receiver

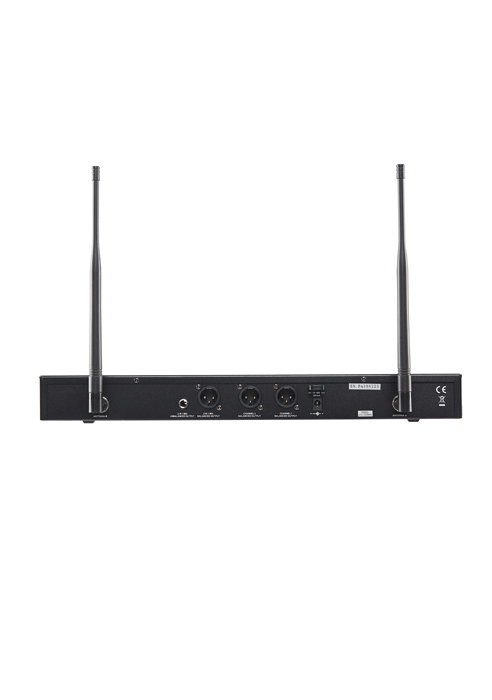

The unit incorporates two receiving antennas and monitors
the signal strength on each antenna, switching automatically
to the strongest receiving antenna. This prevents dropouts
that can occur due to self-destructive interference patterns
of the radio waves, or when a performer moves around stage with the transmitter. This is known as True Diversity reception technology, as opposed to quasi-diversity reception, which uses two antennas but only monitors one at a time, switching when that antenna drops below a certain signal strength, regardless of the strength on the other antenna. 2 Rack ears come with the unit for installing into a rack system.

Other Useful Features

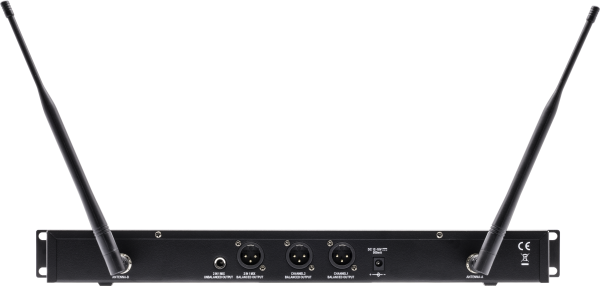

A mute level control on the rear of the unit acts like a noise gate and is useful if there are interference noises when the mic is not being used. The back-lit LCD shows the status of each receiving channel, including the current group and frequency, and active antenna. The 6 segment LED meter indicates RF signal strength and audio input levels.

Features Applications Specifications
  • LCD shows clear working status
  • Digital volume control system light touch button with simple setup
  • True diversity receiver technology, tone key squelch circuit to avoid interference
  • Automatic frequency selection
  • Transmitter battery volume indication
  • Infrared data synchronisation
  • 2 x rack ears included
  • Metal body and rubber end structure for increased drop resistance
  • LCD screen shows group, channel, battery volume, power, gain, mute status
  • RF power adjustment and gain control adjustments
  • Infrared data synchronization.
  • This is the ideal mic for most lead vocalists. It’s also great for stage situations in which a mic will be passed from person to person.
Frequency range and transmitter output level 514-542Mhz
The transmitter RF Power (selectable) 10 - 20 - 30 Mw
Work range on the typical understanding 80meter(240feet)
Notes: The actual scope and RF signal relate to absorption, reflection
Audio frequency response (+/-3db) 60Hz-16KHz
THD (+/- 30khz excursion, 1khz audio) <1%
Dynamic range >90db (A wh)
The work temperature range Notes: Battery characteristics may affect the scope of the limits. -10° to +50°
Handheld transmitter
Maximum audio input level 0dBV
SIZE (including a microphone head) 250mm*50mm diameter
Weight 360g(without battery)
Power requested Two 1.5V “AA” charging battery
Battery life >10 hours (alkalescence)
Audio output level (reference+/-30KHz-1KHz) 655-679MHz
XLR adaptor (switch in 600Ω) -12dBV 1/4
inch adaptor (switch in 3000Ω) -18dBv
Output impedance XLR adaptor : 200Ω 1/4
inch adaptor : 1kΩ
XLR output Balance impedance
Contact pin 1 : GND
Contact pin 2: (+)
Contact pin 3: (-)
Sensitivity (intermediate frequency demodulator output SNR 30db) <-90dBm
Image Rejection
Size 44mm*410mm*160mm
Weight 1750g
Power request 12 V DC, switching power supply 500 milliamperes from an external power
