Slimline array speaker systemsPerformance

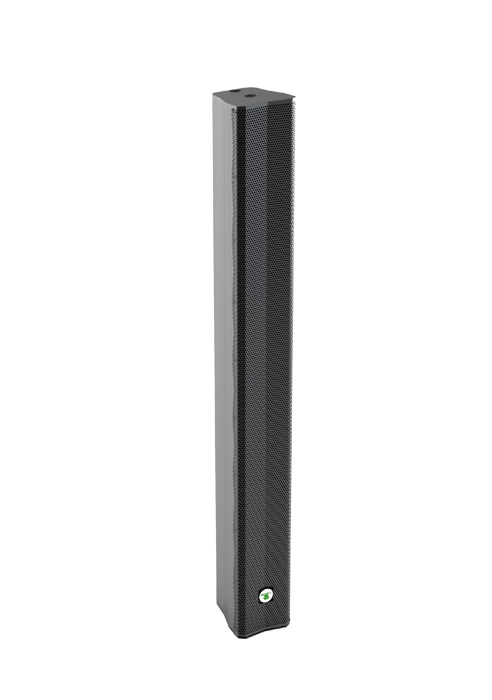

FS12-Array

70 cm Passive Array (8 x 3.25")

The FS12 Array features eight 3.25’’ mid/high frequency drivers.

FS12 Array delivers 90 degrees of horizontal coverage and 10 degrees vertical coverage.

The compact line array guarantees high performance in a unique and flexible design.

It is unbelievably easy to use and it delivers a perfect sound quality.

Sleek and lightweight, its shape has been designed specially for frequently-traveling users.

Features

  • Compact Plug and Play line array
  • Discreet look for inconspicuous use
  • Line array element configuration (8 x 3,25” speakers) offers exceptional sound coverage
  • Compact speaker line array for concerts, conferences and events and more
  • Delivers 90° of horizontal coverage and 10° vertical coverage with and a very long acoustic throw capacity
  • Designed, engineered and tuned in Italy

Applications

  • The FS-12 array is ideal for mobile and installed applications
  • A good solution for all sizes of indoor/outdoor live event and applications such as large restaurant, lounge, bar,
    conference, school auditorium and places of worship

Specifications

Acoustics
Frequency response150 Hz - 19000 Hz (-3dB - +1dB)
Power rating240W
SPL 1W@1mt96 dB
Maximum SPL118dB (cont.) - 124 dB (peak)
Impedance8 Ω
Coverage
Horizontal90°
Vertical10°
Transducers
High Frequency8x3.25’’ array
Physical
Net Weight8Kg (17,6 lb)
Dimensions WxHxD9cm x 70cm x 10cm (3,54" x 27,56" x 3,94")
